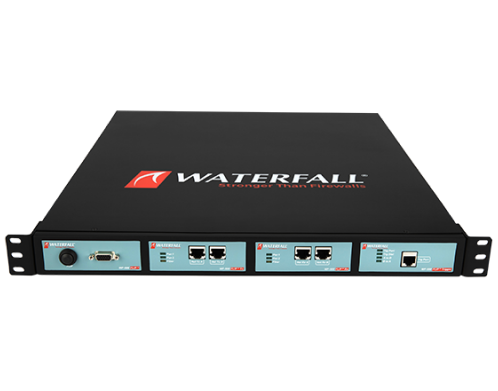

WF-Flip

The Waterfall FLIP is a type of Unidirectional Gateway whose orientation can be physically reversed, enabling safe scheduled updates to OT networks without the vulnerabilities firewalls always introduce. The FLIP is deployed to routinely provide safe updates for the OT network such as operating system updates, updating antivirus signatures, uploading batch productions orders, and security updates.

Reversing the FLIP is possible by either physically pushing a button on the device, or by  physically connecting to the management port and scheduling reversals.

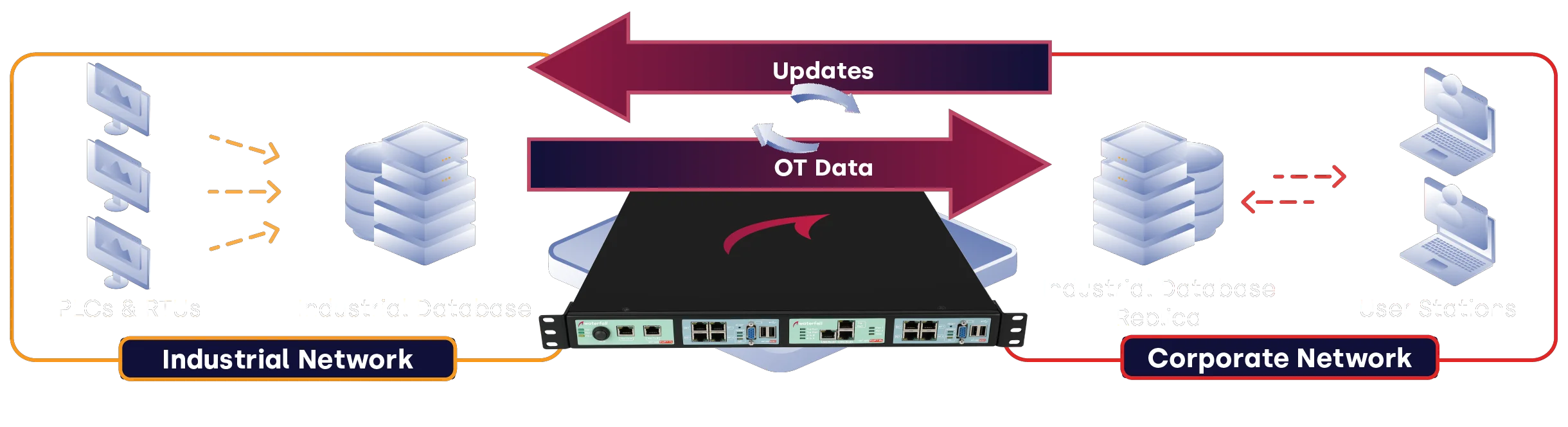

How it works

Group 1117

Connect

To a wide variety of industrial data sources

Group 1117-1

Protect

The OT network with hardware-enforced technology

Group 1117-2

Replicate

OT data, servers and devices to the IT network in real time

Group 1117

Reverse

Orientation periodically for safe updates of OT systems

Benefits

Real-time monitoring with safe updates

Disciplined, scheduled, secure updates to unidirectionally-protected networks

Defeats online cyber attacks

Reducing down-time, equipment damage, environmental & public safety incidents and ensuring operational continuity by preventing cyber attacks

Extensive connector library

Assures compatibility with industrial data sources, even in complex fleet-wide deployments

Self contained

Network appliance with a simple web-based user interface, without the need to install hosts or software on industrial or IT networks

Unlimited connectivity

Enables safe vendor monitoring, secure remote access and real-time enterprise-wide visibility into operations

Safe IT/OT integration

Provides the benefits of IT/OT integration, without the risks of firewalled IT/OT connectivity

Features

asdfxxxx

Hardware is modular, flexible, and user-serviceable

1-2

1Gbps standard throughput

Icon

Guaranteed unidirectional – can never send both ways at once

Icon (1)

Front panel cabinet connections for clear system visibility

Icon (2)

Compatible with Waterfall’s large library of off-the-shelf connectors

Icon (3)

Flexible connector hosting supporting all major operating systems

Technical specifications

Dimensions

43.5(W), 76(D), 4.36(H) cm 1U standard rackmount

Power

110-240V AC, 50-60 Hz

Weight

9.2 kg

Network Interfaces

4 x 1Gbps

Temperature

Operating: +23° +113 ° F / -5° +45° C | Storage: -40° +158° F / -40° +70° C

Certification & Compliance

EMC

EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B

Safety

EN/IEC/UL 62368-1

Environmental

ETSI EN 300 019-2-2
